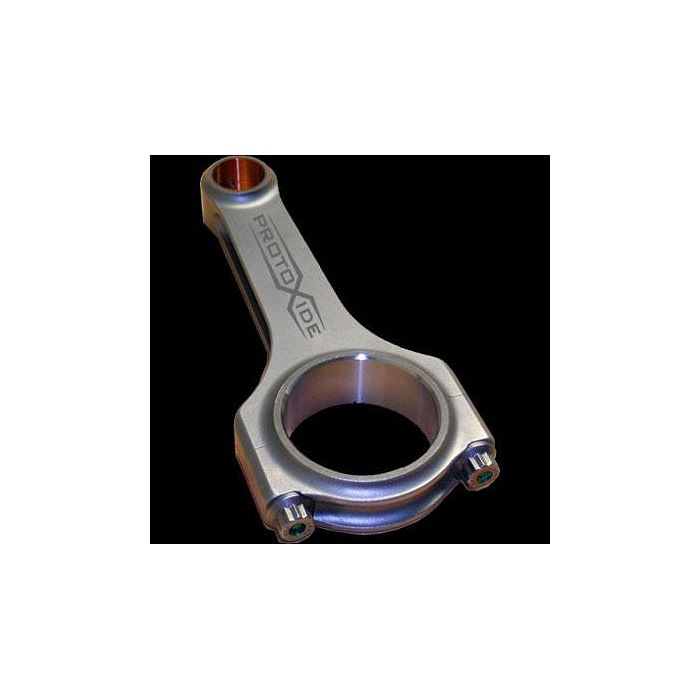

• Ford Escort and Fiesta RS 1600 8v Turbo inverted H steel connecting rods, already tested by our customers and can support over 500hp
• These connecting rods were created to be installed on our pistons with floating pins and not interference pins like the originals.
• Our technical drawing can also be shown and modified only after order confirmation, to receive any written confirmation on the changes to be made (e.g. oversized plug...)
• Connecting rods supplied with the correct bolt tightening torque indicated, we also remain at your disposal to answer all your assembly doubts which will allow you to carry out a correct installation free of errors due to lack of experience.

Below are the technical data:

• Weight: gr. 100 CAD/ONE
• Connecting rod length A : 100.00mm
• Connecting rod head hole diameter B : 100.00mm
• Pin hole diameter C : 20.62mm floating not due to interference.
• Closing our ARP bolt 6.3 kgm
