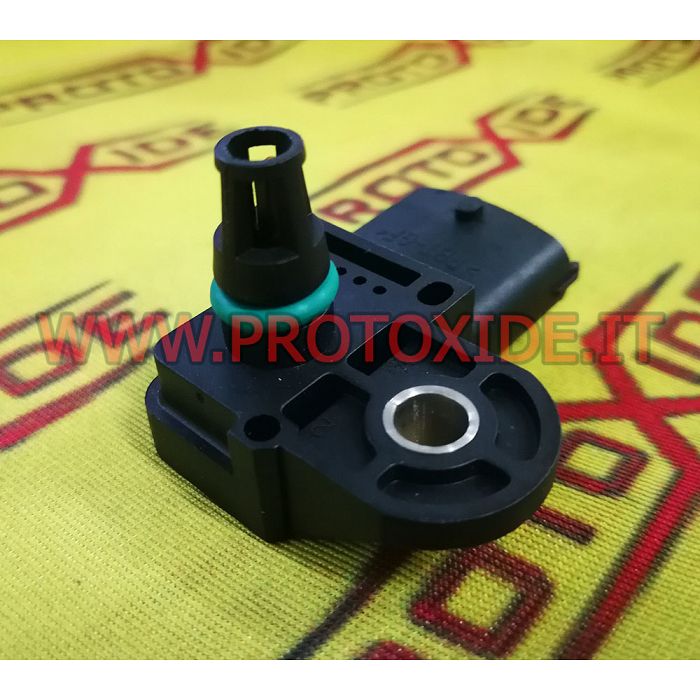

Aps Turbo 3 Bar absolute pressure sensor for FIAT ALFA LANCIA turbodiesel and petrol engines 4 wires
€79.99
Tax included
Pressure sensor increased up to 3 Bar absolute with 4 wires and can be used on any control unit that accepts a 0-5 volt input signal especially on turbodiesel engines but also on turbo petrol when you want to avoid the engine failure warning light and at the same time increase the turbo pressure.
SECURE ENCRYPTED PAYMENTS
ORDER ALWAYS TRACKABLE
SAFE AND PROTECT PROTOXIDE PACKAGING
- ProtoXide oversized pressure sensor up to 3 Bar absolute which is usually used on Fiat Alfa Lancia Turbo Diesel JTD MJET applications or on prepared petrol engines, when you want to manage a turbo engine with higher pressures.
- It allows you to continue reading the turbo pressure from -1 bar up to 2.1 bar, absolute as the pressure sensor is at 3.1 bar.
- This larger sensor prevents the engine warning light from coming on when the turbo pressure limit has been exceeded, especially in turbodiesel engines.
- We can also provide the linearization datasheet needed for programmable racing control units or data acquisition cards.

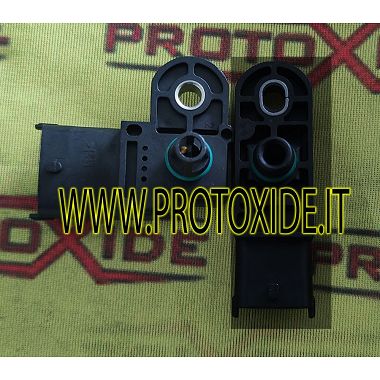

- This sensor can be replaced with the original one, thus having a higher scale, and it is also possible to replace it with 3-wire sensors (see second photo) just make a wiring harness or buy it already made from us.
- Even on Fiat 1300-1600 MJet engines with original 0281002845 or 0281006028, for example, it is possible to install it so you go from 2 bar to 2.5 bar of turbo for this sensor thus avoiding warning lights coming on and the engine works correctly by reading the real pressure.
- However, it is important to have the control unit modified with the correct linearization for this larger sensor to avoid failures already at idle speed.
- On this sensor it is also possible to activate a sensor fault control strategy as the voltage starts to read from 0.5 volts.
- It is also possible to purchase the electrical connector on the wiring side and the support separately to use it with a tube connection.
- The sensor has a 4-wire connector with the intake air temperature sensor also integrated.
- Our sensors, unlike all other sensors on the market, are tested one by one before being sold on our sensor calibration bench, to always be sure of receiving a sensor that works 100% as it should.
Data sheet
- Supply
- 5 volt
