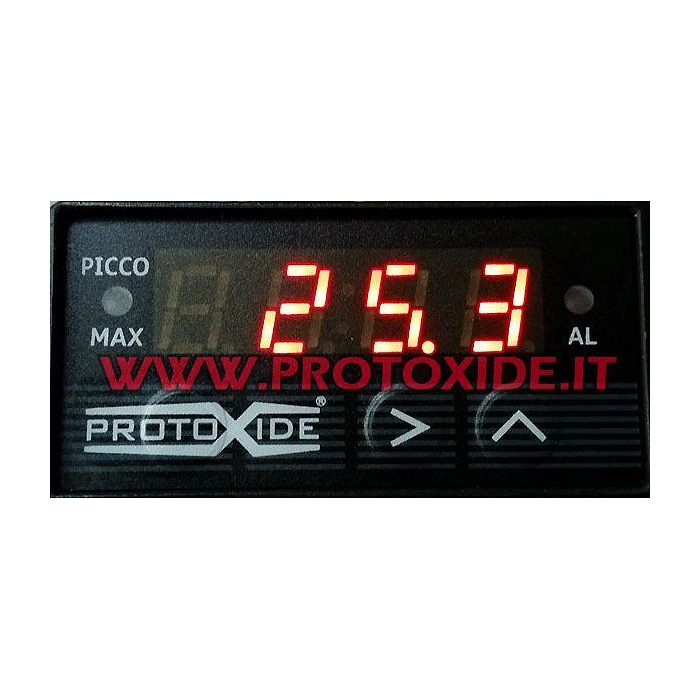

Oil pressure gauge for Fiat Alfa Lancia Fire and Abarth engines with warning light function - compact - with max. Peak memory
€199.99
Tax included
0-10 bar pressure gauge for ProtoXide oil with 4 digits digital with red display, compact with pressure switch function dedicated to all Fiat Fire Abarth engines and similar engines. Complete installation of everything and installs very quickly. Remove the original bulb and put our sensor on the usual thread and that's it.
SECURE ENCRYPTED PAYMENTS
ORDER ALWAYS TRACKABLE
SAFE AND PROTECT PROTOXIDE PACKAGING
- Choose from the menu if you want to buy only the display or the whole kit complete with pressure sensor
- Brand new red 4 digit oil or water or air pressure gauge .
- Incredibly compact dimensions, in fact it allows installation with recessed hole 45x22 mm , with a depth of 70mm,
- With the simple touch of a button it is possible to recall the maximum peak reached with simultaneous lighting of the high intensity blue LED which will show the maximum peak reached and will remain in memory even after turning off the panel, as it writes directly to the internal non-volatile flash memory ! ---- UNIQUE FUNCTION ----
- Internal 3AMP relay that can be activated based on the set point we have set, which will allow you to activate or deactivate any activator when a pressure is reached that can be chosen by setting the display directly with the arrows, and together with the activation of the relay a led will also be activated red on the display .
- Instrument with compensated reading
- Very fast sampling instrument with 4 measurements per second
- 12 DC power supply and consumption less than 2 watts
- Total Accuracy 0.2% "is our most accurate meter! "
- Recessed dimensions 48X24X75mm
- Brightness reduction function by pressing a button
- Precision three-wire pressure sensor included in the instrument.
Data sheet
- Supply
- 12 Volt
- Joint compensation
- Si
- Display
- 4 cifre
- Probe cable length
- Silicone 3 metri
- Precision
- 0.2%
- Depth
- 75mm
- Output 0-5 volts
- Si
- Relay output
- Si
Specific References
0-10 bar pressure gauge for ProtoXide oil with 4 digits digital with red display, compact with pressure switch function dedicated to all Fiat Fire Abarth engines and similar engines. Complete installation of everything and installs very quickly. Remove the original bulb and put our sensor on the usual thread and that's it.
Oil pressure gauge for Fiat Alfa Lancia Fire and Abarth engines with warning light function - compact - with max. Peak memory
