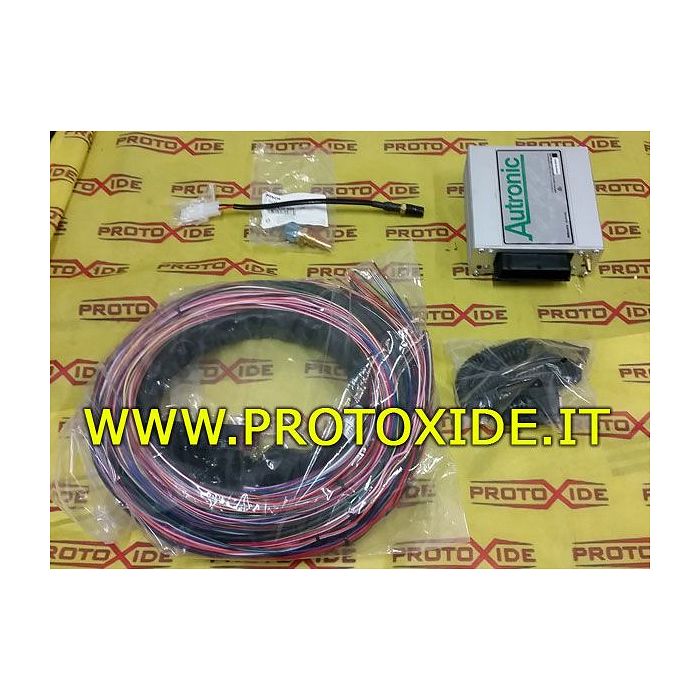

Autronic control unit complete with engine wiring that can be installed on Lancia Delta 2000 16v Programmable control ECU units

Autronic control unit complete with engine wiring that can be installed on Lancia Delta 2000 16v

€2,562.00
Tax included Solitamente 24 ore

Competition programmable ECU that can be installed on Lancia Delta 2000 16v Turbo

Quantity
  Usually shipped in 24 hours

Total Rating Total Rating:

0 1 2 3 4
0/5 - 0 reviews

View ratings
0 1 2 3 4 0
0 1 2 3 0 0
0 1 2 0 1 0
0 1 0 1 2 0
0 0 1 2 3 0

  Add Review View Reviews View Reviews
Pinterest


SECURE ENCRYPTED PAYMENTS



TRACKING NUMBER FOR ALL ORDERS



MON-FRIDAY SUPPORT 10.00-12.30 15.00-17.30

  • This ECU for Lancia Delta Turbo 2000 16v can be replaced with the original, using a supplied Universal wiring that the installer must shorten following our connection diagram and insert the relative connectors. This allows for an installation with a new wiring, (consider that the original wiring nowadays is often damaged and that presents 90% of the problems on the car). This wiring is thus a wiring with wires sized correctly according to the use they will have to support, shielded wires for turns and phase sensor and dedicated colors for easy identification, even present and reported in the control unit software. You will have to repeat, just cut the long wires to size and install the terminal connectors not included, click on the ACCESSORIES tab of this product to buy them
  • However, care must be taken because this does not mean that the internal mapping carried out by the ProtoXide technical department is suitable for all engines (prepared and unprepared, oversized and not injectors ...) this is to make you understand that you will need to fine-tune yourself afterwards. that the car left. (for this reason a base map has already been inserted to allow starting and circulation, but it is strongly recommended to modify it according to your engine configuration. Or in any case there are different gavailable. li>
  • Fully reprogrammable via software (English language) included which works in REAL TIME.
  • Among the many functions there are Launch controll, and Bang-Bang or Anti-Lag.
  • It is strongly recommended to install suitable instrumentation to be able to carry out a mapping such as for example a broadband carburetion probe.
  • The control unit works with all the original sensors and in addition it has already integrated an APS pressure sensor capable of reaching 4.5 absolute barand clearly allows you to ELIMINATE THE TWO APS SENSORS (which only in case of failure costs over 300 euros
  • To this control unit it is possible to connect also thehref = "http://www.protoxide.eu/it/cruscotti-digitali/897-cruscotto-digitale-per-auto-e-moto.html" target = "_ blank" rel = "noreferrer noopener">our digital dashboard, to be purchased separately.
  • Integrated professional self-diagnosis that allows you to independently indicate if the faults are faults in the sensors or on the wiring, in fact this control unit is able to detect, in the event of an error, whether it is an error on the wire or on the sensor and uses the usual failure (injector image) to indicate it in case of failure even without a PC connected by flashing.
  • The software is included and runs on all Windows operating systems (From XP to windows 10) on PC. li>
  • The serial cable is also includedconnection to the control unit itself which becomes usb using a usb converter not included.
  • Assistance for both mapping and installation are to be considered additional costs that can be purchased hereand the purchaser must be responsible for the installation and ensure that they have all the necessary technical requirements for the mapping
  • This package includes starting files, configuration and ECU connection instructions. strong>The user must then have all the appropriate skills to complete a correct installation.
